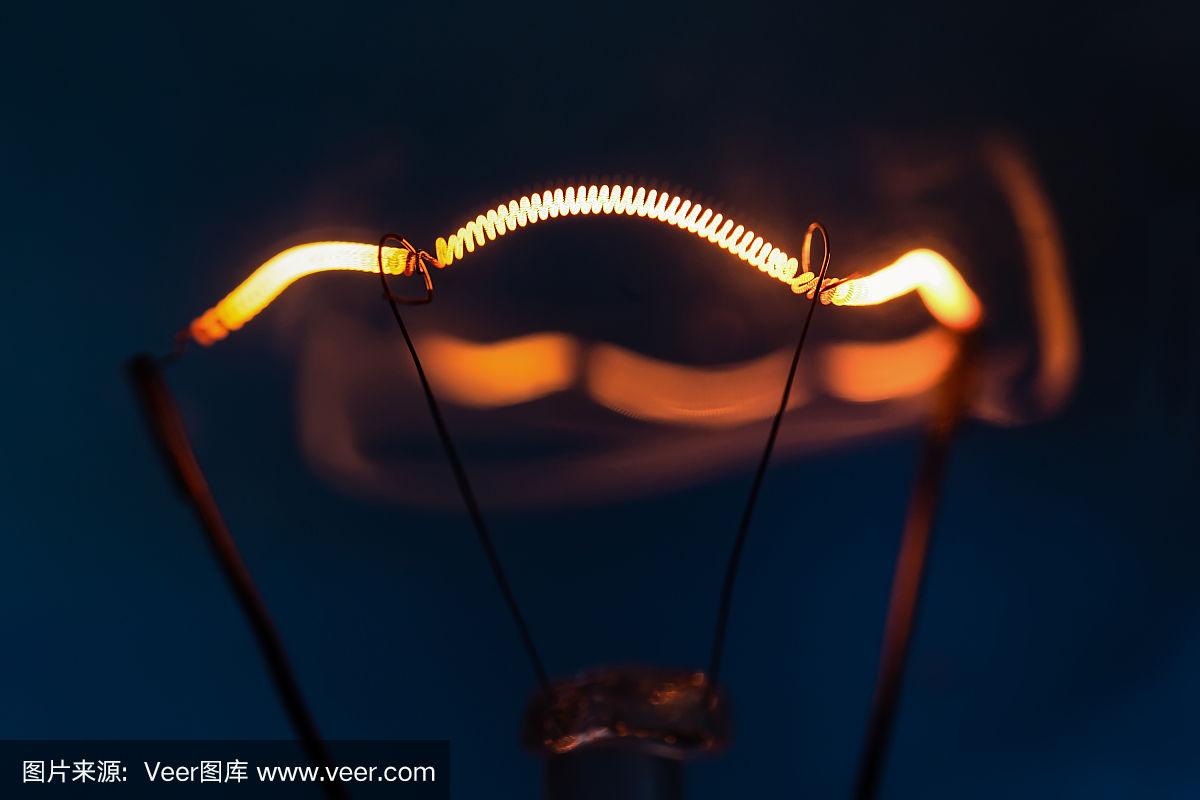

The single-helix filament is a crucial component used in electronic devices and lighting applications.
As the primary source of thermionic emission, it plays an essential role in energy conversion and illumination.
However, due to its high-temperature operating conditions, the lifespan of single-helix filaments has long been a topic of technical and scientific interest.
This article explores the key factors influencing filament longevity and methods to extend its service life.
- Working Principle of a Single-Helix Filament
A single-helix filament is typically made from high-melting-point metals such as tungsten (W), molybdenum (Mo), or rhodium (Rh).
Its diameter usually ranges from 0.2 to 0.5 mm, with lengths of several millimeters to a few centimeters.
In thermionic applications, the filament serves as a heated cathode that emits electrons when raised to a sufficiently high temperature.
When an electric current passes through the filament, Joule heating raises the metal temperature until electrons are released from its surface — a process known as thermionic emission.
- Factors Affecting the Lifespan of a Single-Helix Filament
The service life of a single-helix filament is determined by several interrelated physical and operational factors, including:
(1) Operating Temperature
The filament’s lifespan decreases rapidly with rising temperature.
As it approaches its melting point, the metal structure weakens and vaporization accelerates, increasing the risk of burnout or breakage.
(2) Electric Current
Higher current density generates greater thermal stress within the filament.
Excessive current accelerates structural fatigue and surface evaporation, significantly shortening operational life.
(3) Atmospheric Conditions
The surrounding atmosphere has a strong influence on filament durability.
In an oxidizing environment, the filament surface undergoes chemical reactions forming oxide layers, which degrade electron emission efficiency and mechanical strength.
For this reason, filaments are typically enclosed in vacuum or inert gas atmospheres (e.g., argon) to minimize oxidation and extend service life.
(4) Voltage Fluctuations
High or unstable voltage can induce thermal shock, causing abrupt expansion or contraction in the filament.
Over time, this repeated stress leads to microcracks, deformation, or eventual failure.
- Methods to Extend Filament Lifespan
To ensure long-lasting and stable operation, several engineering approaches can be applied:
(1) Temperature Control
Operate the filament at an optimal temperature — sufficiently high for emission or illumination, but well below the melting point.
This balance minimizes thermal fatigue and material degradation.
(2) Reducing Current Density
By limiting current density, the filament experiences less heat accumulation and structural strain, effectively extending its operational life.
(3) Maintaining a Suitable Atmosphere
Always operate the filament within a vacuum or inert environment to prevent oxidation and contamination, both of which accelerate surface degradation.
(4) Voltage Regulation
Use stable power supplies and voltage-control systems to avoid sudden electrical surges that can damage the filament.
- Conclusion
In summary, the lifespan of a single-helix filament is primarily determined by factors such as operating temperature, current density, ambient atmosphere, and voltage stability.
To extend its service life, these parameters must be carefully controlled throughout design and operation.
Additionally, selecting high-quality materials and optimized manufacturing processes further enhances the filament’s structural integrity and reliability.
Effective control of filament life not only improves device performance but also significantly extends the operational lifespan of the entire system in which it is used.
